Small Volume IP20 Synchronous Inverter , Three Phase Miniature VFD Multipurpose

  • 1
  • 2

Brand Name : STABLECU

Model Number : ST310 15KW-22KW

Certification : CE ROSH

Place of Origin : GuangDong China

MOQ : 1PCS

size : 192*397*199MM

Phase : 3 Phase

IP Grade : IP20

Output Type : Triple

Max Frequency : 3000 HZ

Voltage : 380V

Material : ABS*PC

Color : Huawei Gray

Contact Now

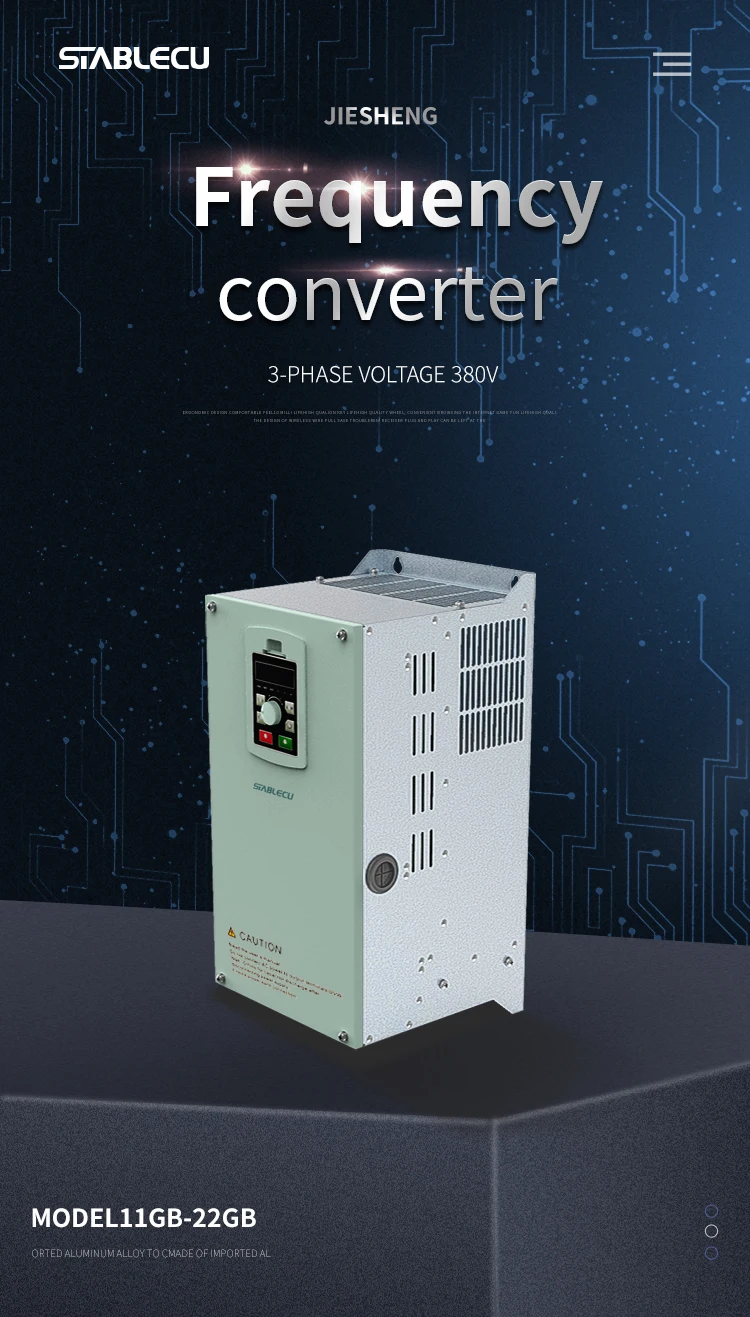

15KW-22KW 380V Three-Phase AC Frequency Inverter Small Volume High-Performance
Product features of variable frequency drive

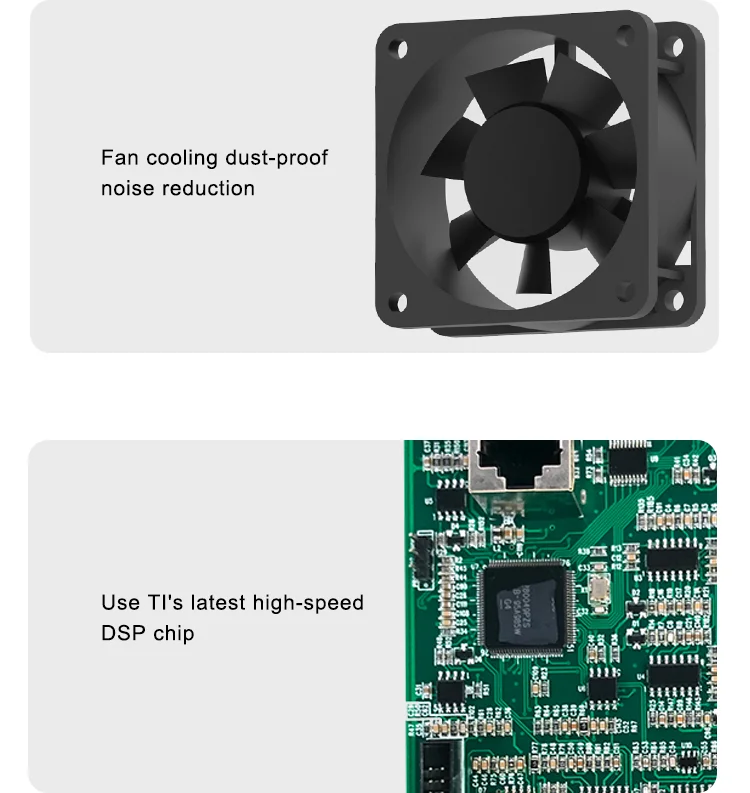

1. Adopt TI's latest high-speed DSP chip and all components from well-known brands.
2. The volume and weight of new generation inverters is lighter, saving installation space.
3. More than three protection functions: short-circuit/over-current/over-voltage and wave-by-wave current limiting.
4. Independent cooling air duct design.
5. The inverter adopts a new software speed tracking algorithm, which has low impact on current and voltage
when tracking and accurate tracking speed.
6. Maximum frequency of 3000 Hz, can be used in one machine. They have been successfully applied to chemical,
metallurgy, machine tools, woodworking, textile and many other industries.
Specification of variable frequency drive
item value
Place of Origin China
Guangdong
Brand Name STABLECU
Model Number ST310-4T15GB
Warranty 18 MONTHS
Type AC/DC inverter
Certification CE
Customized YES
Rated Power 15 KW
Nominal Voltage 380 V
power phase number Three phase
Input frequency 50/60 hz
Output frequency 0-3000 hz
Overload capacity 150% for 60s, 200% for 0.5s
Protection short-circuit,over-current,over-voltage
Horsepower 20 HP
Mounting dimension(W*H*D) 192*397*199(mm)
Gross weight 12 KG (Estimated)
Plastic shell ABS+PC
Machine case Aluminum coated zinc plate, cold rolled plate powder spray
Color Gray

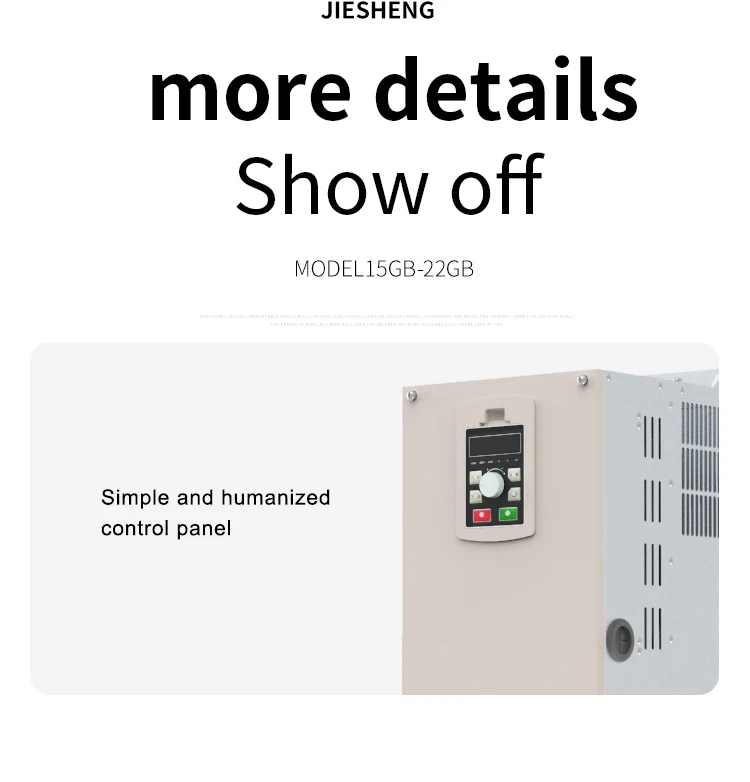

More images of variable frequency drive
Small Volume IP20 Synchronous Inverter , Three Phase Miniature VFD Multipurpose
Small Volume IP20 Synchronous Inverter , Three Phase Miniature VFD Multipurpose
Small Volume IP20 Synchronous Inverter , Three Phase Miniature VFD Multipurpose
FAQ:
1. Who are we?
We are based in Guangdong, China, start from 2009,sell to all over the world. There are total about
201-300 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment;
3. What can you buy from us?
VFD,converter inverter,Ultrasonic mask welding machine
4. Why should you buy from us not from other suppliers?
(1)We focus on providing a stable and secure drive for end users
(2)Automatic digital frequency recovery ultrasonic, superior performance, stable quality
5. What services can we provide?
Accepted Delivery: Terms: FOB,CFR,CIF,EXW,DDP,DDU,Express Delivery；
Accepted Payment :Currency:USD,EUR,JPY,CAD,AUD,HKD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,Mastercard,Credit Card,PayPal,Western,Union, Cash;
Language Spoken:English,Chinese
6. What about the lead time?
For usual products, we keep stock, could ship 1-3days after receiving your payment. For big quantity
and special products, please check
lead time with our salesperson.
